Wasserbauer Shuttle ECO feeding robot

Description:

Shuttle ECO - Wasserbauer

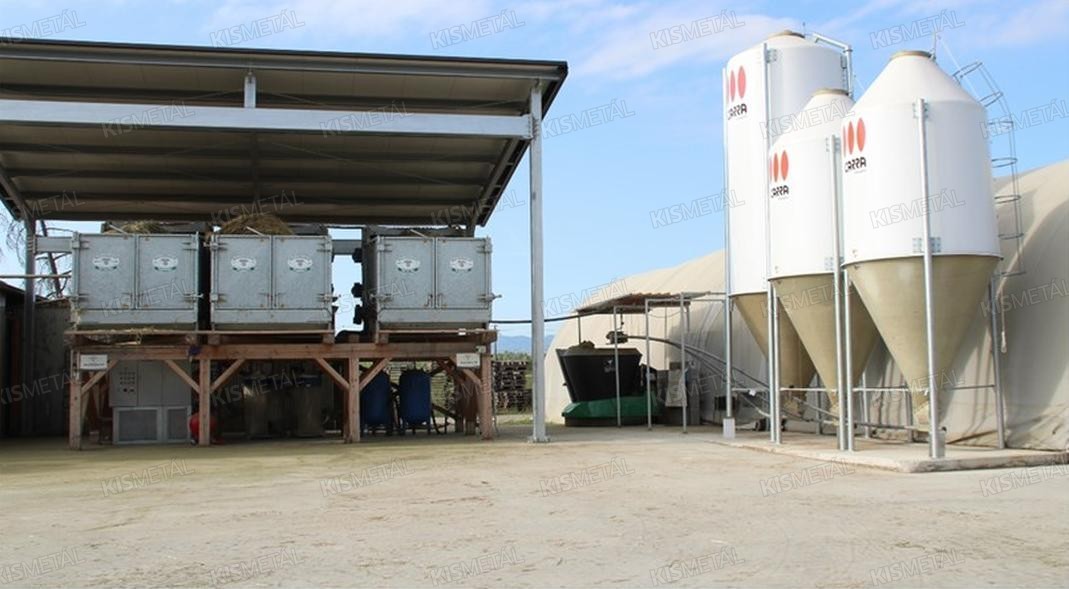

• Modular feed kitchen with storage boxes (ports)
• Flexible working hours because several days' basic ration is already prepared
• Clean and effective storage hoppers, no feed residues, so there is no additional cleaning work
• No feed remnants, less picky feed consumption, forage is already chopped in the storage boxes
• All components are weighed precisely by the feed kitchen and in the mixer
• Uniform metering by scales, which controls the speed of the mixer and opening of the mixer flap
• Rapid return on investment thanks to low power consumption and labour saved
• Consistent and individually adjustable feed rations
• Fresh feed rations several times a day appropriate to each group of animals
• Fresh feed presented several times a day has a positive effect on the natural feeding behaviour of the animals and also leads to a more efficient feed usage

Application: Autonomous feeding robot that holds 2.2 m³

Dimensions: 2450 x 1730 x 2050 mm

Weight: 2500 kg

Daily feed quantity: 10,000 - 12,000 kg depending on feed material

Mixer volume: 2.2 m³ / up to 800 kg

Travelling speed: up to 13 m/min

Navigation: Magnets embedded in the floor at 1-metre intervals

Magnet diameter: 5 mm, no steel plate needed on the floor

Battery operated: 48V battery, cooling and heating mats integrated into the battery

Charger terminal: Drive-in intelligent charging station for consumption-optimised charging cycles, connected load 400V/16A

Gradient: up to 10%

Filling: Feed kitchen customer-optimised for feed components & daily feed volume, basic ration, concentrates, mineral feed, liquid components

Trough width: to one side 2500 mm, to both sides 3000 mm upwards (4500 mm needed to turn around)

Options: Battery expansion, magnetic separator, second charging station, feed height measurement

Power consumption: Approx. 20 kWh/day (farm with 50 dairy cows)
