Wasserbauer Lift silage extractor system

Description:

Wasserbauer Lift silage extractor system

THE LIFT PAYS OFF:

• Retrieve fresh feed from the silo at any time
• Even distribution across the entire silo width
• Fully automatic extraction from any type of silo
• Significant labor time savings
• Low energy consumption with electric operation
• No labor-intensive intermediate steps for filling storage containers
• Dimensions: 4.100 mm length x 2.100 mm width
• Weight: 5.200 kg
• Daily feed quantity: 30.000 - 40.000 kg/day
• Silo dimensions: up to 4,5 m height
• Navigation: ground drive & ultrasonic distance measurement
• Power supply: 400 Volts, 16A
• Suction pipe length: up to 100 m
• Options: suction cyclone on mobile base frame, expansion of the silo system with automatic tarp covering and rolling system, thermal imaging camera for detecting preheated feed (from 2023)

FRESH FEED DIRECTLY FROM THE SILO TO THE ANIMALS

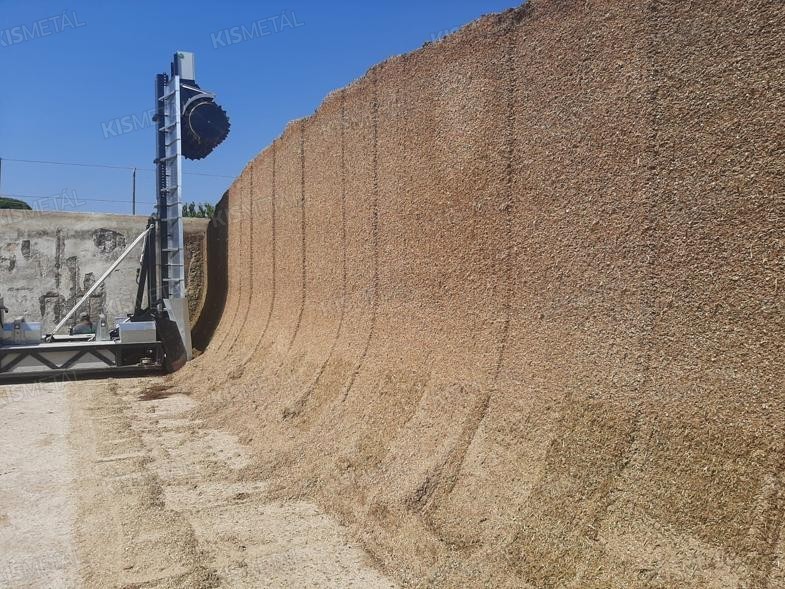

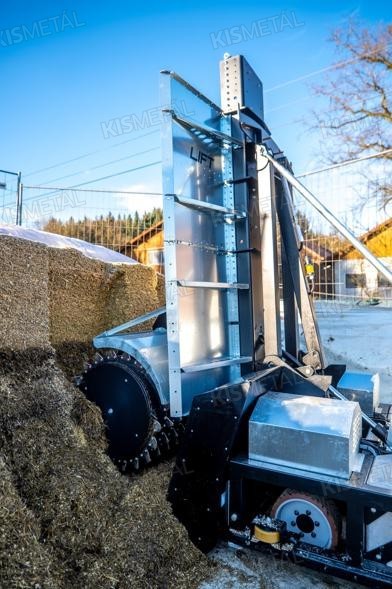

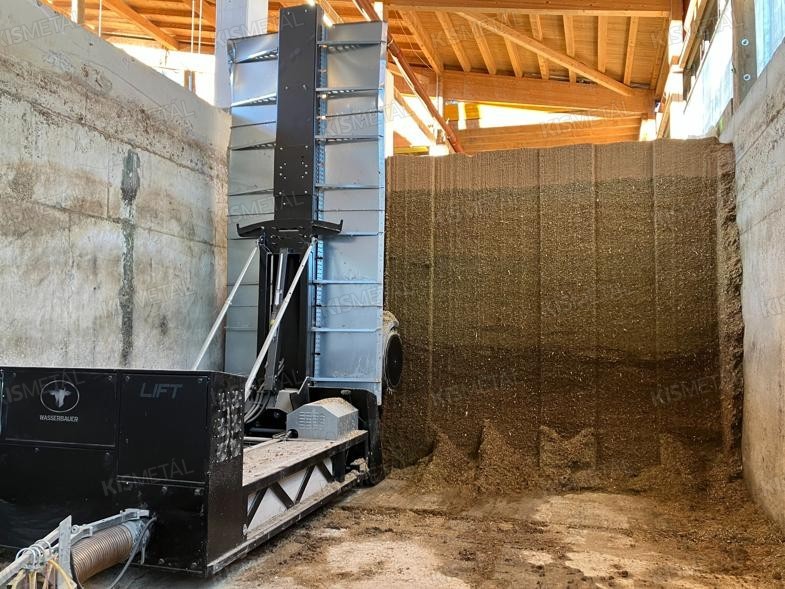

With the Lift, Wasserbauer enables the first fully automated, electric-powered feeding solution – directly from the silo to the animals. The Lift is installed once in the silo, and that’s all the work needed for the next weeks or months. The device automatically mills the feed from the silo stock and directly loads it into the Shuttle Eco feeding robot in the barn.

• Fully automatic base feed extraction from any type and size of silo
• Optimal freshness with demand-based feed amounts and even distribution
• No storage loss – avoiding quality degradation
• Proven high-silo technology: the cyclone directly doses the feed into the feeding robot
• No need for additional extraction equipment like loaders, telescopic loaders, or silo block cutters
• Self-propelled device – easily positioned between different silos
• Suitable for all types of silage
• Can be combined with other storage systems (MyPort, Smart Port, silos, etc.)
• Reduces construction costs of a feed kitchen, no fossil fuels needed
• Battery storage system for smoothing power peaks and reducing the need for electrical supply lines

Media:

CABRIO WITH LIFT: 100% FULLY AUTOMATED FEEDING – FROM SILO TO ANIMALS

The option to combine the Cabrio silo covering system with the Lift silo retrieval system is particularly efficient and, together with the Shuttle ECO feeding robot, enables 100% automation of the entire feeding process, from the silo to the animals. In this version, the Lift silo retrieval system autonomously controls the opening and closing of the Cabrio tarp (protecting the feed from sunlight and rainwater). The Lift then fully automatically extracts the feed from the silo, milling it off the silage face, and loads it into the Shuttle ECO feeding robot, which delivers it directly to the animals. This forward-thinking solution, combining Cabrio, Lift, and Shuttle ECO, is operated entirely electrically and is characterized by low energy costs.
